SLP low-pressure pump

    Pump specifications

    Dependable and efficient operation with minimal noise and vibration. All FEDCO pumps come with an 18-month warranty as standard.

    The SLP low-pressure pump is engineered to deliver years of maintenance-free service, with Super Duplex construction and best-in-class efficiency.

    This pump is ideal for use in low-pressure RO applications, including pretreatment, permeate conveyance or backwash.

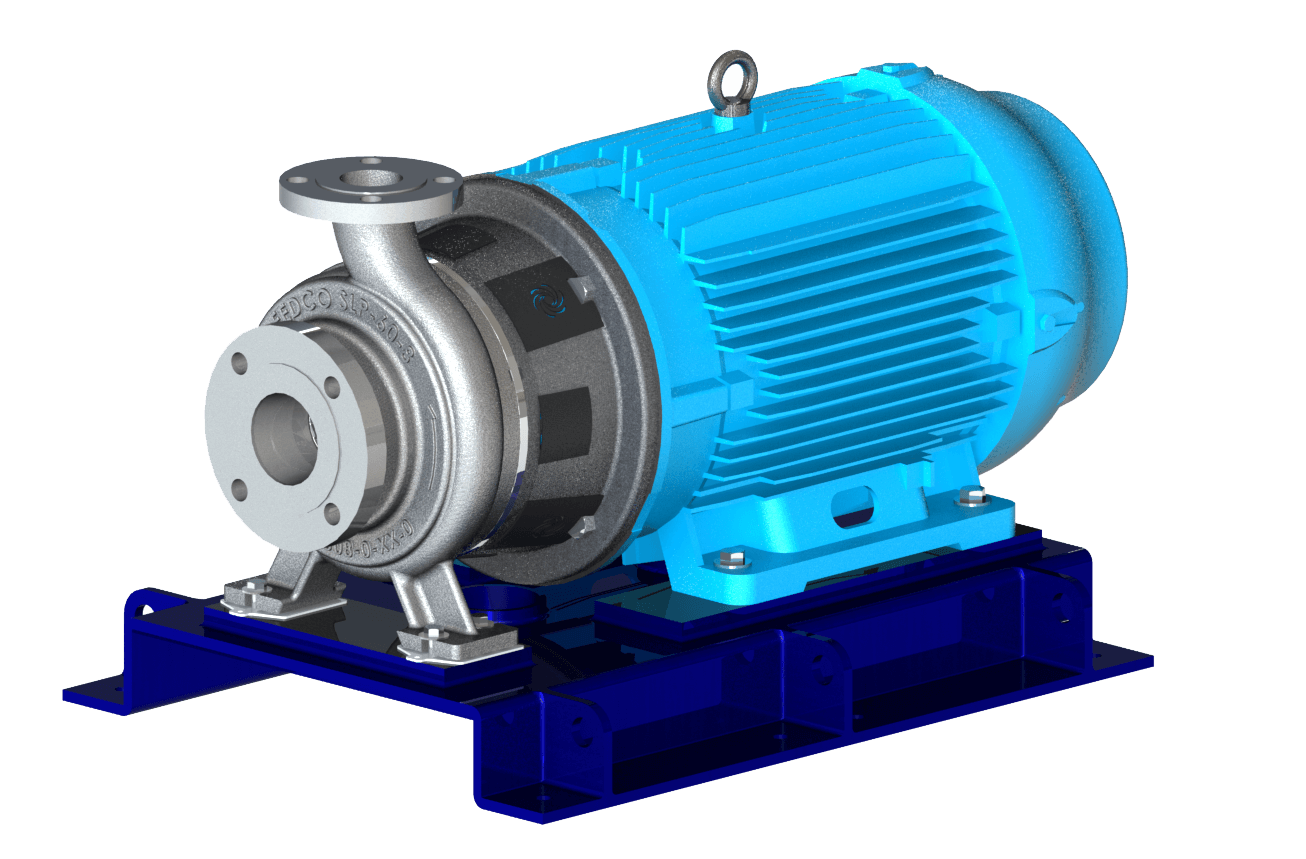

    SLP Rendering 3
    Green line waves_thin

    Product highlights

    Pump type: Single stage end suction pump
    Material: Super Duplex stainless steel
    Diff. pressure: Up to 9 bar (130 psi)
    Flowrate: Up to 375 m3/hr (1,650 gpm)
    Efficiency: Up to 84%
    Green line waves_thin

    Product resources

    Operating range
    Key specifications

    Pump type End suction, single stage close coupled horizontal centrifugal pump
    Material Super Duplex stainless steel
    Applications General water process applications, reverse osmosis low-pressure feed pump, pretreatment, backwash, and permeate transfer
    Performance Range
    Flow rate
    6.8 - 375 m3/h (30 - 1650 gpm)
    Differential pressure
    2.4 - 9 bar (35 - 130.5 psi)
    Pressure rating
    19 bar (270 psi)
    Efficiency
    Up to 84%
    Features No oil or grease lubrication required
    Compact footprint
    Centerline discharge & self-venting design
    Pump design eliminates motor thrust load and extends shaft seal life
    Construction
    		 Pipe connections ANSI 150lb flanges
    Motor NEMA standard TEFC, JM or JP motor frame
    Mechanical seal Standard mechanical seal with seal flush
    Operating range
    SLP-50-Hz-curves



    SLP-60-Hz-curves
